There are maps that invite you to begin with a place name. This Admiralty chart does something more disciplined. It asks you first to accept that water has been measured, qualified and warned about before it has been made picturesque. The western English Channel is familiar enough as a phrase, especially from Southampton, where the sea is never quite an abstraction. Yet on this sheet the Channel is not romantic space. It is a surface of figures, cautions, bearings and limits.

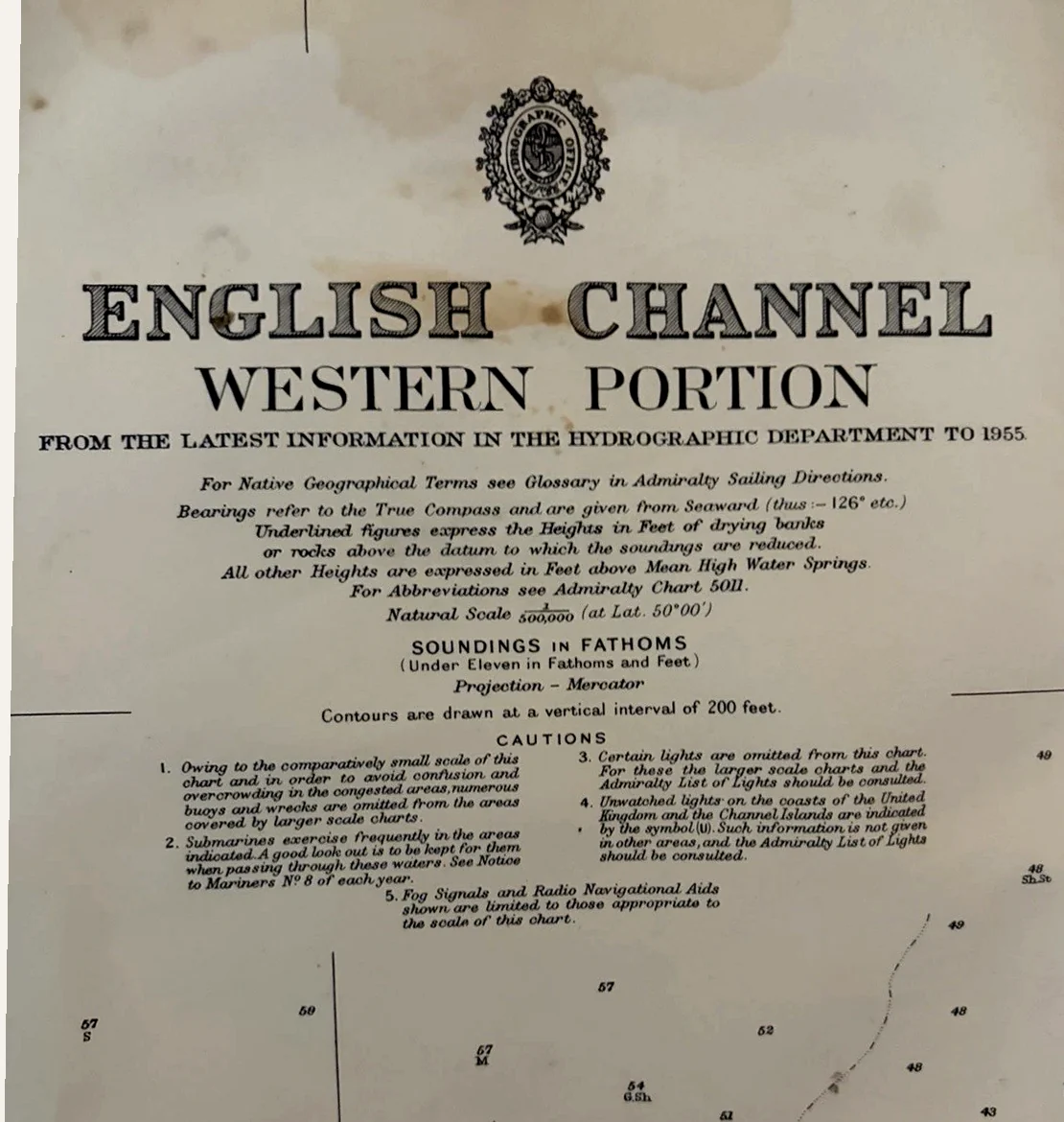

That is what caught me: not a decorative coastline, but the chart’s refusal to let the reader look lazily. The title block says English Channel, Western Portion, but underneath it comes a different kind of prose. Bearings refer to the true compass. Underlined figures express certain heights. Soundings are in fathoms. Larger scale charts and Admiralty publications must be consulted for information omitted here. Before the chart gives confidence, it teaches caution.
I have written before, in How to Read an Old Map, about beginning at the title, scale and margins. With a sea chart, that habit becomes even more important. The centre may be full of numbers, but the instructions around it tell you how not to misread those numbers. A chart is not simply a picture of where things are. It is a working agreement about what a careful user needs to know, and what the sheet cannot safely promise.
A title block that admits its limits
The printed statement “From the latest information in the Hydrographic Department to 1955” is doing precise work. It gives the chart a date, but not in the same way a commemorative print gives a date. Hydrographic knowledge is not fixed once and for all. It is accumulated, revised, corrected and sometimes superseded. A 1955 statement therefore belongs to a system of continuing survey rather than to a single artistic event.
The UK Hydrographic Office archive describes a record of maritime charting reaching back through the Admiralty’s hydrographic work, while the UKHO’s current services still include ADMIRALTY paper nautical charts and publications. That institutional continuity matters when looking at an older sheet. The object in front of us is not merely “an old map of the Channel”; it is a surviving product of an official information system.
I like the humility of the cautions. They are not small print in the modern evasive sense. They are part of the chart’s honesty. Because of the comparatively small scale, several buoys and wrecks are omitted in congested areas. Certain lights are omitted. For other information, the user is directed elsewhere. The chart’s authority is not weakened by that admission. It becomes more serious because it tells us where its authority stops.
Numbers instead of scenery
Once the eye moves away from the title block, the sea becomes a dense field of soundings. These small figures are the chart’s basic grammar. They look modest, but they change the way one sees the page. On a land map, height may be shown by contours, hachures, colour or spot heights. On this chart, depth presses up everywhere from below the surface.
The title block states that soundings are in fathoms, with depths under eleven fathoms also given in feet. The National Ocean Service explains soundings as measurements of water depth and notes that a fathom equals six feet. That plain definition helps with the visual shock of the sheet. Each number is a small act of measurement. The chart is not colouring water blue and leaving it at that. It is making depth legible.
This is where the object becomes quietly fascinating. The eye begins to compare numbers before it follows towns. It notices shoals, banks, contours and areas where information thickens. The familiar habit of reading coastline as outline gives way to another habit: reading the sea as a floor one cannot see. The chart asks for imagination, but not the decorative sort. It asks the reader to imagine a vessel moving through measured risk.
The compass rose is not ornament

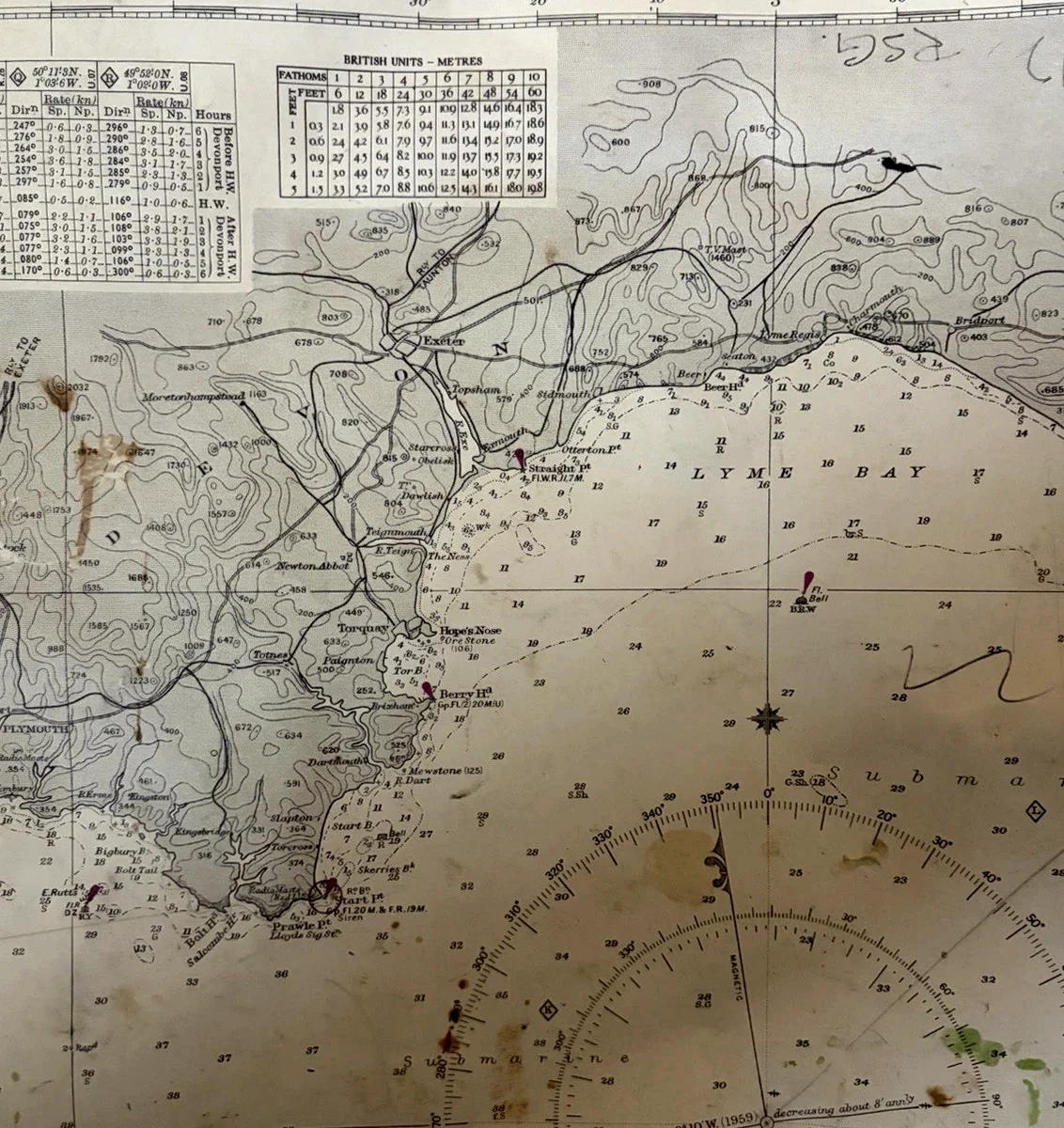

The compass rose is one of the most attractive parts of any chart, which makes it easy to treat as decoration. Here it is more practical than romantic. The chart tells the reader that bearings refer to the true compass and are given from seaward. The compass rose then sits inside a wider apparatus of orientation: latitude and longitude, course, variation and the relation between printed direction and the magnetic behaviour of the earth.
That last point is easy to underestimate. Magnetic north is not the same as true north, and it changes by place and time. The NOAA National Centers for Environmental Information describe magnetic declination as the angle between magnetic north and true north. On a working chart, that is not a classroom aside. It is one of the reasons old navigation paper has to be read historically. The object can teach us how it once organised a passage, but it should never be mistaken for present navigational authority.
For a collector, that distinction is important. This chart is compelling because it is obsolete as a tool and alive as evidence. It preserves a 1955 state of hydrographic information, later handling and visible correction marks. It does not ask to be steered by now. It asks to be understood.
Two coasts, one working surface

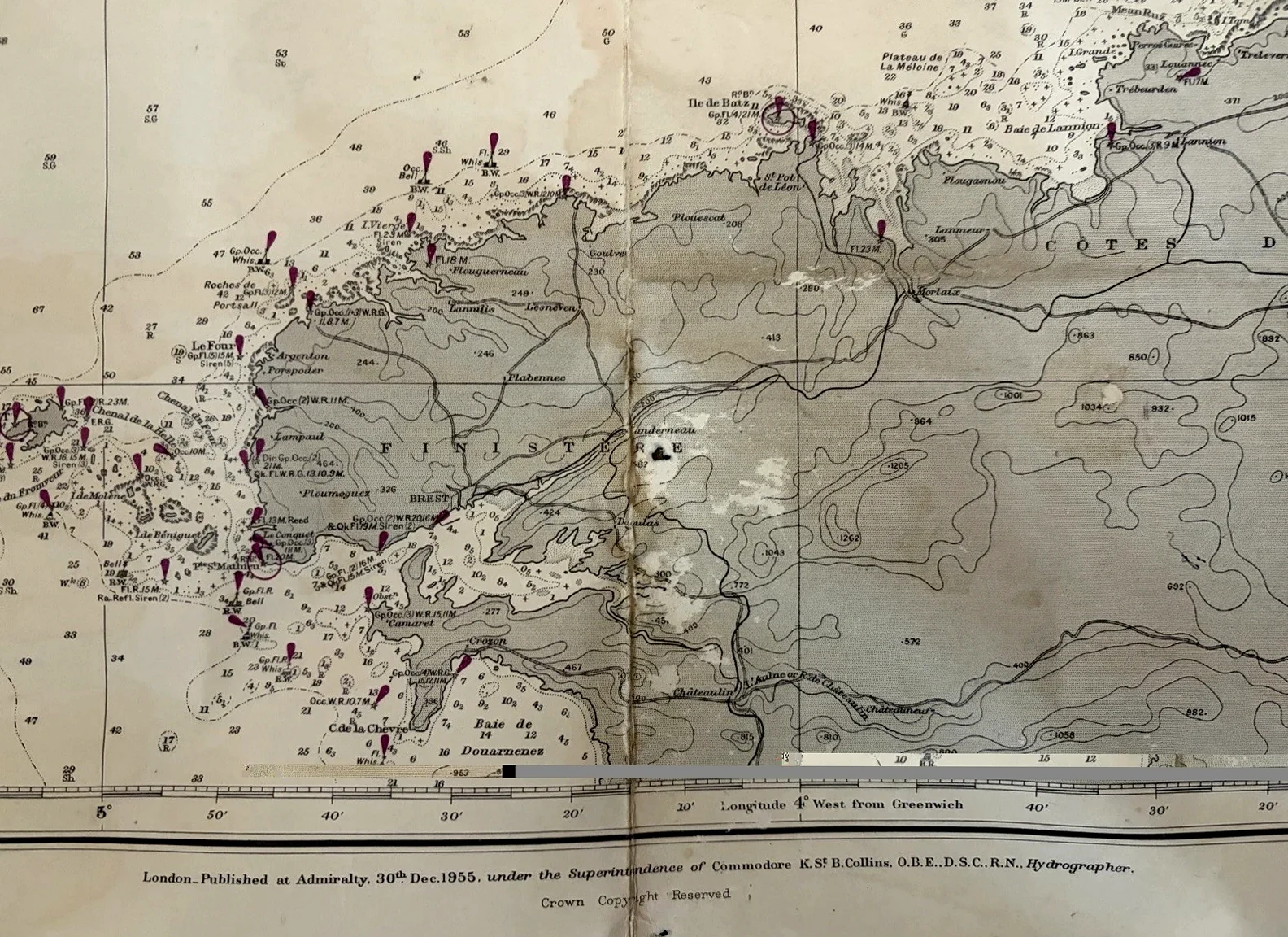

The western Channel is not just an English coastline with water beside it. The sheet holds both sides of the passage: Devon, Cornwall, Brittany, the approaches around Brest, islands, shoals, routes and open water. It is easy to say “English Channel” and imagine a boundary. The chart makes the place feel more like a shared problem of passage, measurement and warning.
I am drawn to the way the sheet makes land secondary without making it unimportant. Coastlines give the chart its frame, but the meaning sits between them. Names, lights, rocks, banks and soundings belong to a practical conversation across the water. It is not a traveller’s map in the usual sense. It is not trying to persuade the reader to visit. It is trying to keep the reader attentive.
There are coloured marks visible on the photographed copy. I do not want to overstate them. Without the relevant correction record in hand, they are best treated as evidence that the chart lived after printing, not proof of a particular voyage or user. This is where old paper rewards restraint. A pencilled or coloured addition may be interesting precisely because it remains partially silent.
Why this chart holds my attention
The pleasure of this object is different from the pleasure of an atlas plate. It is less about colour and more about compression. A large part of the sheet is made of tiny decisions: which light is omitted, which warning is printed, which contour is drawn, which scale is sufficient, which publication must be consulted elsewhere. The chart is full of information, but it is also full of disciplined absence.
That makes it a good companion to the military-map notes in Start at the Edge. In both cases, the border and marginal language matter because they stop the reader from making easy claims. The most interesting paper is often not the paper that lets us say more, but the paper that teaches us to say only what the object supports.
For me, Admiralty Chart 2649 is satisfying because it turns the sea into something readable without pretending the sea is simple. It gives scale, soundings, cautions, compass information and official publication language, then leaves the reader with the sense that knowledge was always being revised. The sheet survives now as a collectible object, but its original intelligence was practical. It was made for attention.
Source notes: this editorial is based on the photographed copy of Admiralty Chart 2649, English Channel — Western Portion, carrying a Hydrographic Department information statement to 1955 and an Admiralty publication line dated 30 December 1955. External context is drawn from the UK Hydrographic Office archive and services pages, the National Ocean Service explanation of soundings, and NOAA/NCEI’s explanation of magnetic declination. Historic nautical charts should be read as collecting and research objects, not used for navigation.
